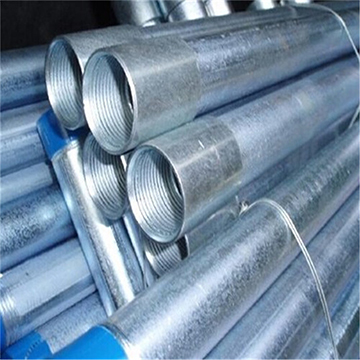

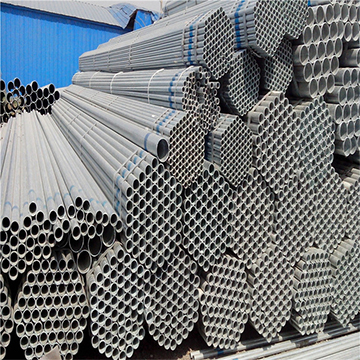

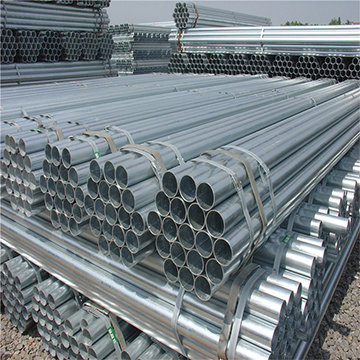

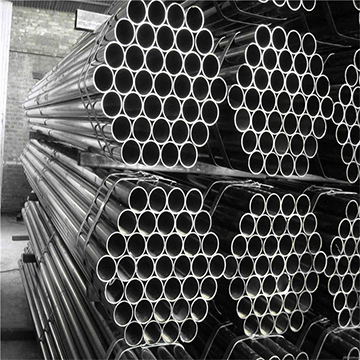

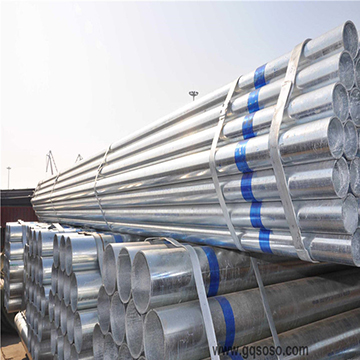

BS1387 Hot dipped galvanized Welded steel pipe





















Payment Type:



L/C,T/T/DP/OA



Incoterm:



FOB,CFR,CIF



Min. Order:



27 Metric Ton



Delivery Time:



25 Days


Categories:

Galvanized steel pipe can be divided into cold galvanized steel pipe, hot galvanized steel pipe, cold galvanized steel pipe has been banned

Hot dip galvanized steel pipe is widely used in fire protection, power and highway.

Hot dip galvanized steel pipe is widely used in construction, machinery, coal mine, chemical industry, electric power, railway vehicles, automobile industry, roads, Bridges, containers, sports facilities, agricultural machinery, petroleum machinery, exploration machinery and other manufacturing industries.

Welded steel tubes with hot dip or electric galvanizing coating on the surface of galvanized steel tubes.Galvanizing can increase the corrosion resistance of steel pipes and prolong their service life. Galvanized pipe USES is very wide, in addition to a general low pressure fluid such as water, gas, oil line pipe, also used as oil industry, especially the ocean oil field oil well pipe, oil pipe, chemical coking equipment of oil heater, the condensing, exchange of coal distillation wash oil cooler for tube, and trestle pile, mining tunnel supporting frame tube, etc

Size OD  1/2” -24” (13.7mm-609.6mm)
  Wall Thickness 1.6mm-28mm
CLASS A-1, CLASS A, CLASS B, CLASS C, SCH20,SCH40,STD,XS,SCH80,SCH160,XXS
  Length 5.8M Length, 6M Length or 12M Length or as requested

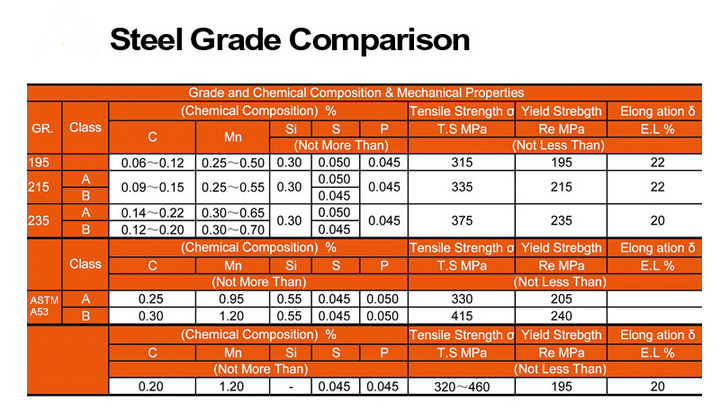

Steel material  Q195, Q235, 20#,16Mn,St37,St52,St44, etc

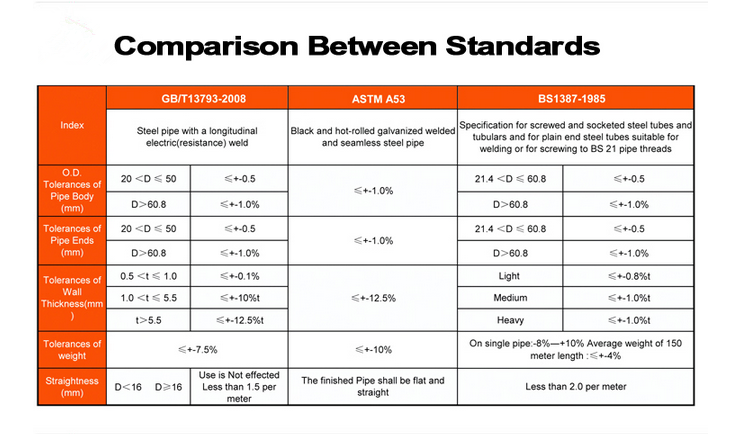

Standard BS1387:1985, API 5L,ASTM A53,ASTM A106,GB/T 8163,GB/T 8162,DIN 17175,DIN 2448 etc
PRODUCTIVITY 5000MTONS PER MONTH
Usage 1)low pressure liquid, water, gas, oil, line pipe
2)construction
3)fence, door pipe
Ends 1) Plain
2) Beveled
3) Thread with Coupling or cap
4) Chamfer
5) Groove
6) Screw
End protector 1) Plastic pipe cap
2) steel socket
Surface Treatment 1) Bared
2) Black Painted (varnish coating)
3) hot dipped Galvanized
4) Oiled
5) PE,3PE, FBE, corrosion resistant coating, Anti corrosion coating.
Type cold drawn, hot rolled
Section Shape Round
Inspection With Hydraulic Testing, Eddy Current , Infrared Test
Port of Shipment Xingang Port, Tianjin, China
Date of Delivery 20 days after confirmation or According To The Quantity And Specification Of Each Order
