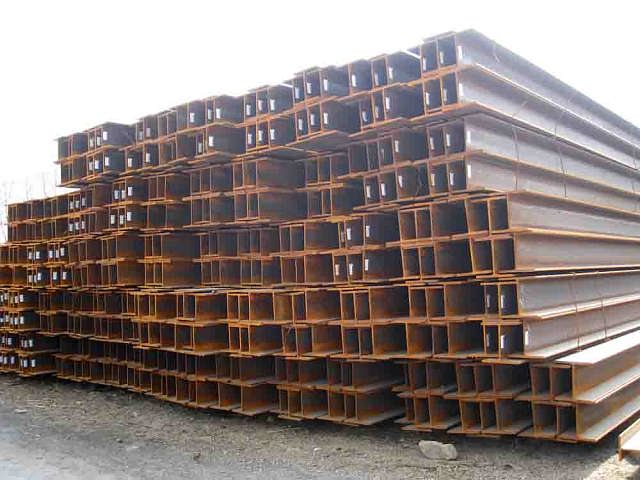

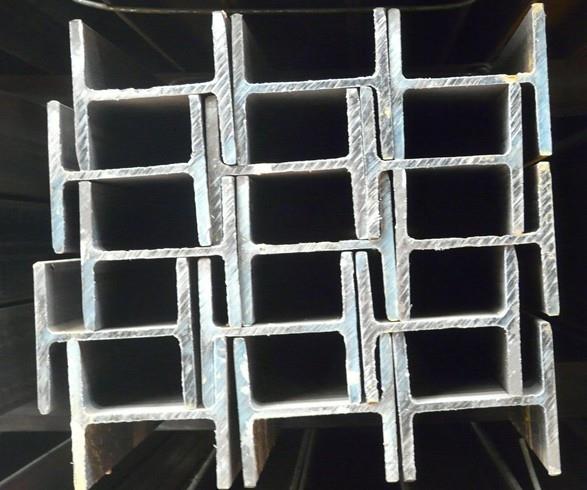

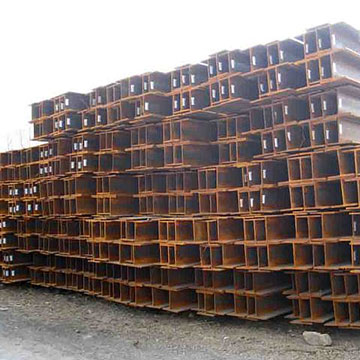

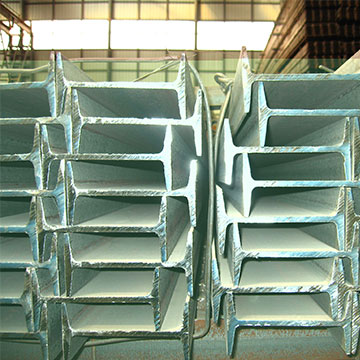

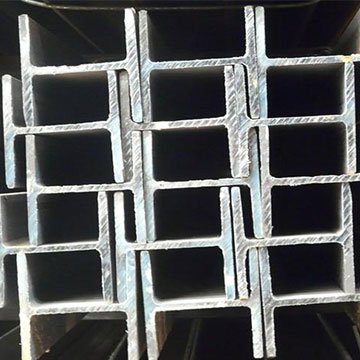

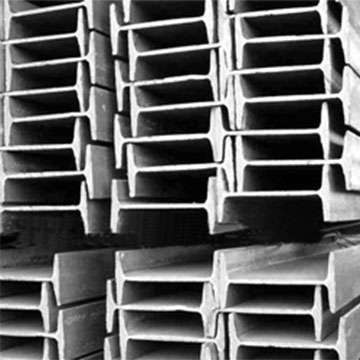

H beam

Payment Type:

L/C,T/T/DP/OA

Incoterm:

FOB,CFR,CIF

Min. Order:

27 Metric Ton

Delivery Time:

25 Days

Categories:

H beam is a section area distribution more optimized, more reasonable ratio of economic section efficient profile, because its section and the English letter “H” the same name.As all parts of h-beam are arranged at right angles, h-beam has been widely used because of its strong bending resistance, simple construction, cost saving and light structure weight.

H beam is a new economic construction steel.The shape of h-section is economical and reasonable, with good mechanical properties. When rolled, the points on the section extend evenly and the internal stress is small. Compared with ordinary i-beam, h-section has the advantages of large section modulus, light weight and metal saving, which can reduce the building structure by 30-40%.And because of its leg inside and outside parallel, leg end is a right Angle, assembly assembly into components, can save welding, riveting workload of up to 25%.It is often used in large buildings (such as workshops, high-rise buildings, etc.), Bridges, ships, hoisting and transportation machinery, equipment foundation, supports, foundation piles, etc.

The main material of H section steel is Q235B, SM490, SS400, Q345, Q345B

Type Height * Width H*B H B t1 t2 kg/m
HW type 100*100 100*100 100 100 6 8 17.2
125*125 125*125 125 125 6.5 9 23.8
150*150 150*150 150 150 7 10 31.9
175*175 175*175 175 175 7.5 11 40.42
200*200 200*200 200 200 8 12 50.5
200*204 200 204 12 12 56.7
250*250 250*250 250 250 9 14 72.4
250*255 250 255 14 14 82.2
300*300 294*302 294 302 12 12 85
300*300 300 300 10 15 94.5
300*305 300 305 15 15 106.3
350*350 344*348 344 348 10 16 115
350*350 350 350 12 19 137
400*400 388*402 388 402 15 15 141
394*398 394 398 11 18 147.3
400*400 400 400 13 21 172.3
414*405 414 405 18 28 233
428*407 428 407 20 35 284
400*408 400 408 21 21 197.4
HM type 150*100 148*100 148 100 6 9 21.4
200*150 194*150 194 150 6 9 31.2
250*175 244*175 244 175 7 11 44.1
300*200 294*200 294 200 8 12 57.3
350*250 340*250 340 250 9 14 79.7
400*300 390*300 390 300 10 16 107.3
450*300 440*300 440 300 11 18 124
500*300 482*300 482 300 11 15 115
488*300 488 300 11 18 129.1



Type Height * Width H*B H B T1 T2 kg/m
HM type 600*300 582*300 582 300 12 17 137
588*300 588 300 12 20 151.1
594*302 594 302 14 23 175
HN type 150*75 150*75 150 75 5 7 14.3
175*90 175*90 175 90 5 8 18.2
200*100 198*99 198 99 4.5 7 18.5
200*100 200 100 5.5 8 21.7
250*125 248*124 248 124 5 8 25.8
250*125 250 125 6 9 29.7
300*150 298*149 298 149 5.5 8 32.6
300*150 300 150 6.5 9 37.3
350*175 346*174 346 174 6 9 41.8
350*175 350 175 7 11 50
400*200 396*199 396 199 7 11 56.7
400*200 400 200 8 13 66
450*200 446*199 446 199 8 12 66.7
450*200 450 200 9 14 76.5
500*200 496*199 496 199 9 14 79.5
500*200 500 200 10 16 89.7
506*201 506 201 11 19 103.1
600*200 596*199 596 199 10 15 95.2
600*200 600 200 11 17 106.1
606*201 606 201 12 20 120.3
700*300 692*300 692 300 13 20 166
700*300 700 300 13 24 185
800*300 792*300 792 300 14 22 191
800*300 800 300 14 26 210
900*300 900*300 900 300 16 28 243



HBEAM WEIGHT LIST
Specification Weight KGS/M Specification Weight KGS/M Specification Weight KGS/M
DESCRIPTION CHINESE GB JIS DESCRIPTION CHINESE GB JIS DESCRIPTION CHINESE GB JIS
100*100*6*8 17.2 16.9 346*174*6*9 41.8 41.2 700*300*13*24 185 182
125*125*6.5*9 23.8 23.6 350*175*7*11 50 49.4 708*304*15*28 216
148*100*6*9 21.4 21.1 350*350*12*19 137 135 792*300*14*22 191 188
150*75*5*7 14.3 14 350*357*19*19 156 800*300*14*26 210 207
150*150*7*10 31.9 31.1 388*402*15*15 141 140 900*300*16*28 243 240
175*90*5*8 18.2 18 390*300*10*16 107 105 450*200*9*14 76.5 74.9
175*175*7.5*11 40.3 40.4 394*398*11*18 147 147 470*202*11*24 115.2
194*150*6*9 31.2 29.9 394*405*18*18 169 482*300*11*15 115 111
198*99*4.5*7 18.5 17.8 396*199*7*11 56.7 56.1 488*300*11*18 129 125
200*100*5.5*8 21.7 20.9 400*200*8*13 66 65.4 496*199*9*14 79.5 77.9
200*200*8*12 50.5 49.9 400*150*8*13 55.8 55.2 500*200*10*16 89.6 88.2
200*204*12*12 56.7 56.2 400*400*13*21 172 510*206*16*21 129
244*175*7*11 44.1 43.6 400*408*21*21 197 512*202*12*22 114
248*124*5*8 25.8 25.1 414*405*18*28 233 232 506*201*11*19 103 102
250*125*6*9 29.7 29 414*202*10*20 94.5 93.9 582*300*12*17 137 133
250*250*9*14 72.4 71.8 428*407*20*35 284 283 588*300*12*20 151 147
250*255*14*14 82.2 81.6 440*300*11*18 124 121 594*302*14*23 175 170
294*200*8*12 57.3 55.8 446*199*8*12 66.7 65.1 596*199*10*15 95.1 92.5
294*302*12*12 85 83.4 512*202*12*22 114 600*200*11*17 106 103
298*149*5.5*8 32.6 32 506*201*11*19 103 102 600*304*16*26 198 194
298*201*9*14 65.9 64.4 582*300*12*17 137 133 606*201*12*20 120 118
300*150*6.5*9 37.3 36.7 588*300*12*20 151 147 692*300*13*20 166 163
300*300*10*15 94.5 93 594*302*14*23 175 170 700*300*13*24 185 182
300*305*15*15 106 105 596*199*10*15 95.1 92.5 708*304*15*28 216
338*351*13*13 106 600*200*11*17 106 103 792*300*14*22 191 188
340*250*9*14 79.7 78.1 600*304*16*26 198 194 800*300*14*26 210 207
344*348*10*16 115 113 606*201*12*20 120 118 900*300*16*28 243 240
344*354*16*16 131 692*300*13*20 166 163
